4K HDR Lenses

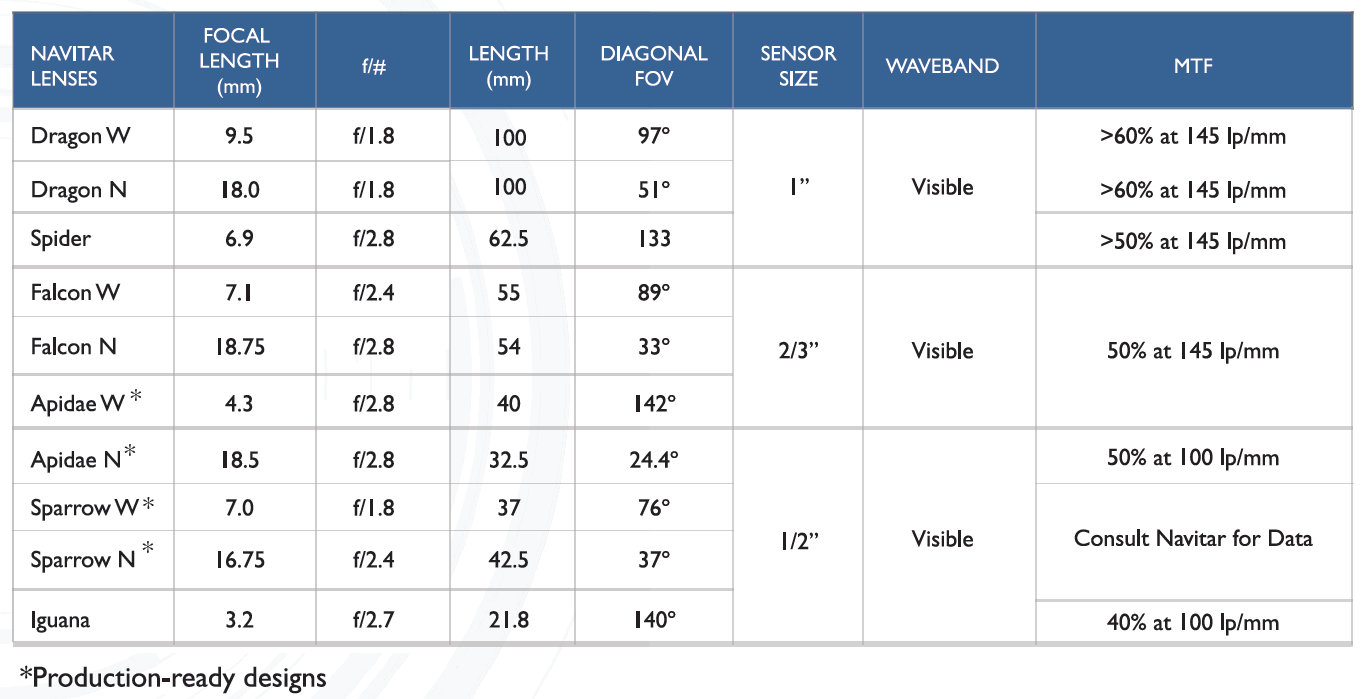

* Production-ready designs

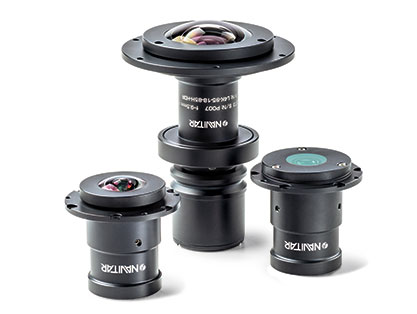

Navitar has developed a family of high resolution lenses for demanding imaging applications such as unmanned aerial vehicles (UAV) and autonomous vehicle (AV) forward-facing camera systems. Multiple fields of view are offered for 1/2", 2/3" and 1" sensor formats.

Navitar's 4K HDR lenses are produced with state-of-the-art multi-layer anti-reflection coatings, a built-in infra-red rejection filter and ultra low reflectance internal mechanics for excellent veiling glare characteristics.

Compact and Lightweight HDR Wide Angle Lenses

Navitar's 4K compact, lightweight HDR wide angle lenses offer superior stray light rejection down to 1E-5 while maximizing MTF at the Nyquist frequency of small pixel sensors.

Operating in the visible or VIS/NIR waveband at apertures up to F/1.8, these new lenses are environmentally robust and perform at military grade temperature ranges of -20°C to +80°C.

Additional features and lens options:

  • IP67 sealing for use in water depths up to 1 meter

  • Optional iris or dual position electronic shutters allow precise control of exposure levels for day/night imagery.

Maximum performance is obtained by automated lens-sensor alignment, creating robust camera modules that can survive hostile environments and deliver superior image quality.  Navitar is equipped to offer actively-aligned lens/sensor modules to our customers in both short run and high volume production volumes at their ISO 9001:2008 and ISO/TS 16949:2009 certified facility.

Our HDR lenses were designed specifically to meet the demanding requirements of autonomous vehicles. They offer excellent results in terms of image quality, athermalization and ghosting.

Additional applications include:

  • POV and action cameras

  • Virtual and augmented reality cameras

  • UAV and Robotic Imaging

  • Automotive - including autonomous vehicles

  • High resolution security and surveillance

  • Police/fire body cameras

Active lens/sensor alignment service for OEM's available. Contact Navitar for additional information.
